NORMAFIX® - Retaining Products
NORMAFIX® NORMETTA®

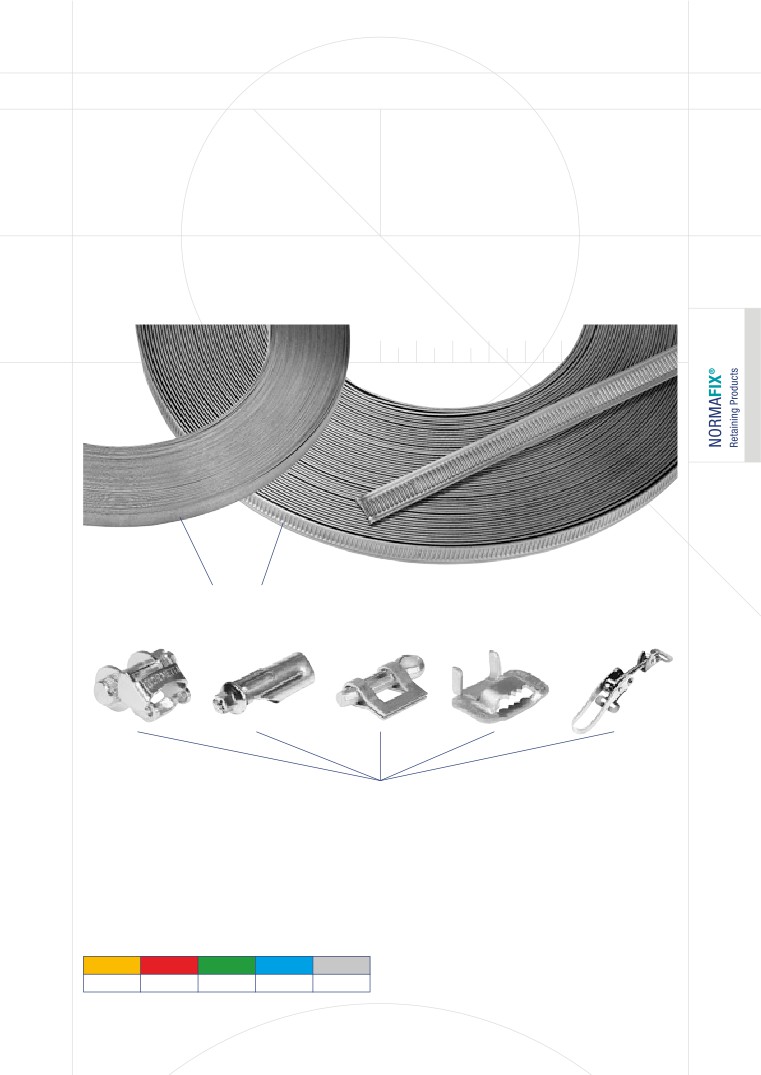

The NORMAFIX® NORMETTA® clamping system consists of a
Continuous band clamping system
continuous band which fits nearly any shape and size of the
objects to be retained or clamped. In addition there is a choice
of five different closure types (buckles).
The NORMAFIX® NORMETTA® clamping
system is particularly
suitable for fixing and/or repair purposes under difficult or extra-
ordinary conditions.
Short description of technical features
Continuous band, either smooth or stamped worm-drive band
= flexible and suitable for use in many applications
5 different closure types available to fit various applications
Materials
W1
W2
W3
W4
W5
x
x
x
113
NORMAFIX® - Retaining Products
The Band and Closure Types
We supply the continuous band in 30 m coils either as smooth
band in various band widths or as stamped worm-drive band
(only 13 mm) in different material qualities.
You can choose from 5 closure types:

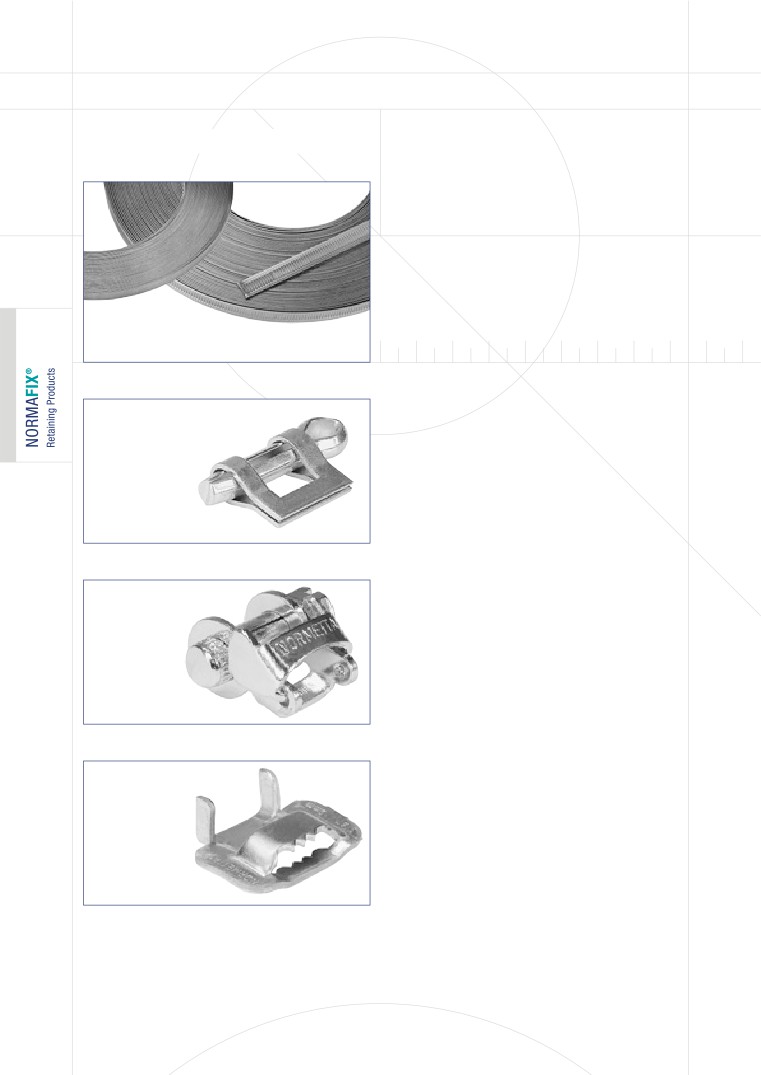

Buckle type NB-A
is suitable for lighter applications such as fixing smaller signs
NB-A
and sealing low-pressure hoses.
Material: W1
Reusable.
for band width
5, 9 mm
Required tools: Steel pin, 90° offset screw driver or pliers, tin
snips.
Buckle type NB-B
Application: Same as NB-A.
NB-B
Reusable.
Material: W1
for band width
Required tools: Spanner, SW 8 or screwdriver, tin snips.
9 mm
Buckle type NB-D
is suitable for fixing signs, containers and pipes as well as for
NB-D
sealing hoses.
Material: W4
for band width
Required tools: Tightening and cutting tool, hammer.
9, 13, 16, 19 mm
114
NORMAFIX® - Retaining Products

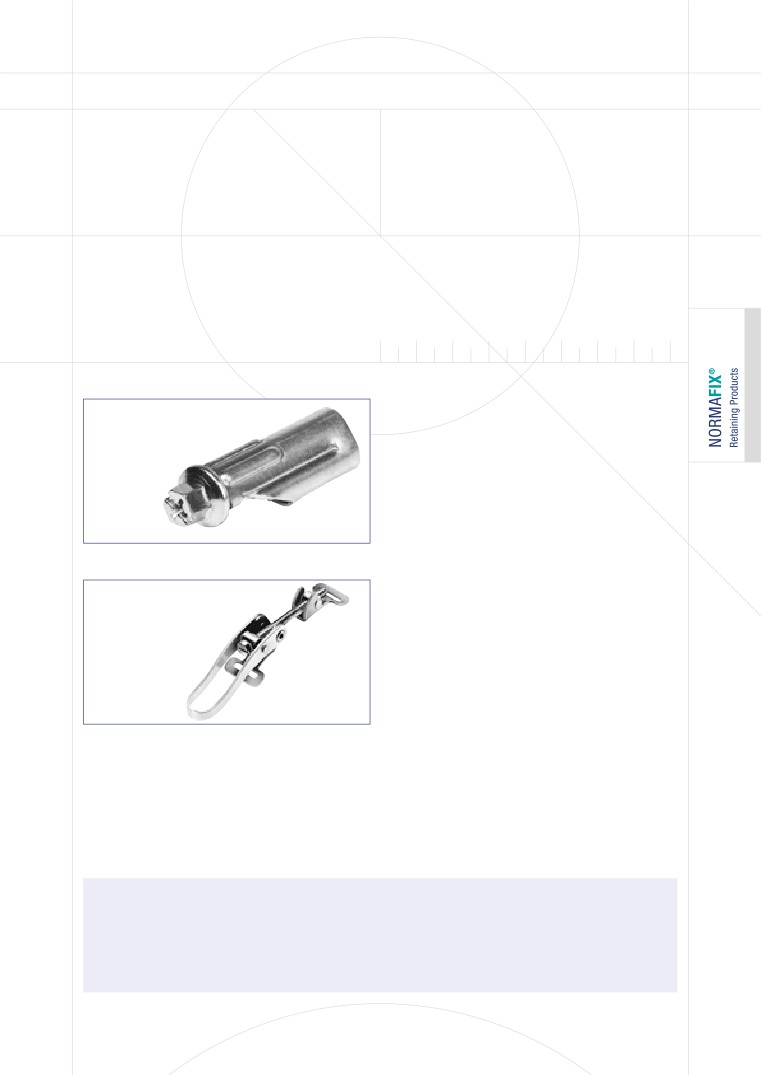

Buckle type NB-G
for worm-drive 13 mm band. Suitable for applications in
NB-G
tight conditions.
Material: W1, W3
Reusable.
for worm-drive
band
Required tools: Screwdriver or hexagonal wrench SW 7 and
tin snips.
Buckle type NB-H
is an adjustable quick-release buckle and enables quick and
NB-H
simple assembly and disassembly.
Material: W1
Reusable.
for band width
16, 19 mm
Required tools: Screwdriver and tin snips.
Applications
• Retaining, sealing and repairing pipes
• Retaining signs and containers
• Sealing hoses
The advantages at a glance
• Flexible, multi-purpose system
• Ease of assembly even in narrow spaces
115
NORMAFIX® - Retaining Products

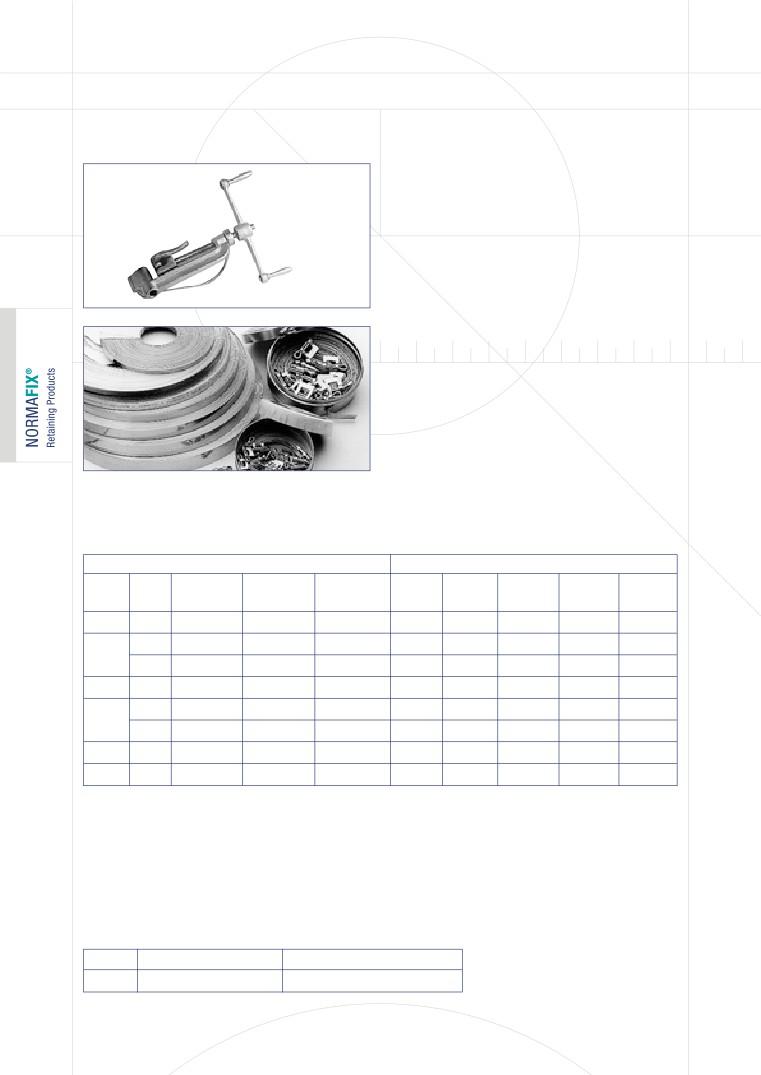

Tools
1 Clamping and Cutting Tool
We recommend this high-quality tool for professional use. It
is easy to handle and can withstand tension forces of up to
approx. 10,000 N (1,000 KP).
2 Mini Repair Kits
•
5 pieces Contents = 8 m band W1, 5
mm wide plus
25 buckles type NB-45.
Part number 560 8520 003
• 9 pieces Contents = 8 m band W1, 9 mm wide plus
25 buckles type NB-A9.
Part number 560 8520 001
Survey of sizes, band widths & materials
NORMAFIX® NORMETTA®
Coil with 30 m Band
Appropriate Buckle Type
Band width
Band
W 1(zinc plated
W3
W4
NB-A
NB-B
NB-D
NB-G
NB-H
(mm)
thickness
mild steel)
(1.4016)
(1.4371)
5
0.35
560 8500 004
-
-
NB-A5 W1
-
-
-
-
9
0.40
560 8500 001
-
-
NB-A9 W1
NB-B9 W1
NB-D9 W4
-
-
0.55*
-
-
560 8554 009
-
-
NB-D9 W4
-
-
13
0.70*
-
-
560 8553 013
-
-
NB-D13 W4
-
-
12
0.80
560 8566 001
-
-
-
-
-
NB-G12 W1
-
pressed
0.80
-
560 8566 003
-
-
-
-
NB-G12 W3
-
16
0.70*
-
-
560 8553 016
-
-
NB-D16 W4
-
NB-H16 W1
19
0.70*
-
-
560 8553 019
-
-
NB-D19 W4
-
NB-H19 W1
* also available in 1.4301 material
Enquiries/ordering:
When making enquiries or placing an order please state
as follows:
1. Order code/coil
2. Order code/buckle
Example
560 8554 009
NB-D9 W4
