NORMAFIX® - Retaining Products
NORMAFIX® RS/RSGU/RLGU
NORMAFIX® RS/RSGU pipe retaining clips are the ideal retaining
Pipe retaining clips to DIN 3016
elements for pipes, cables, cable harnesses, cable protection
pipes, hoses and other applications.

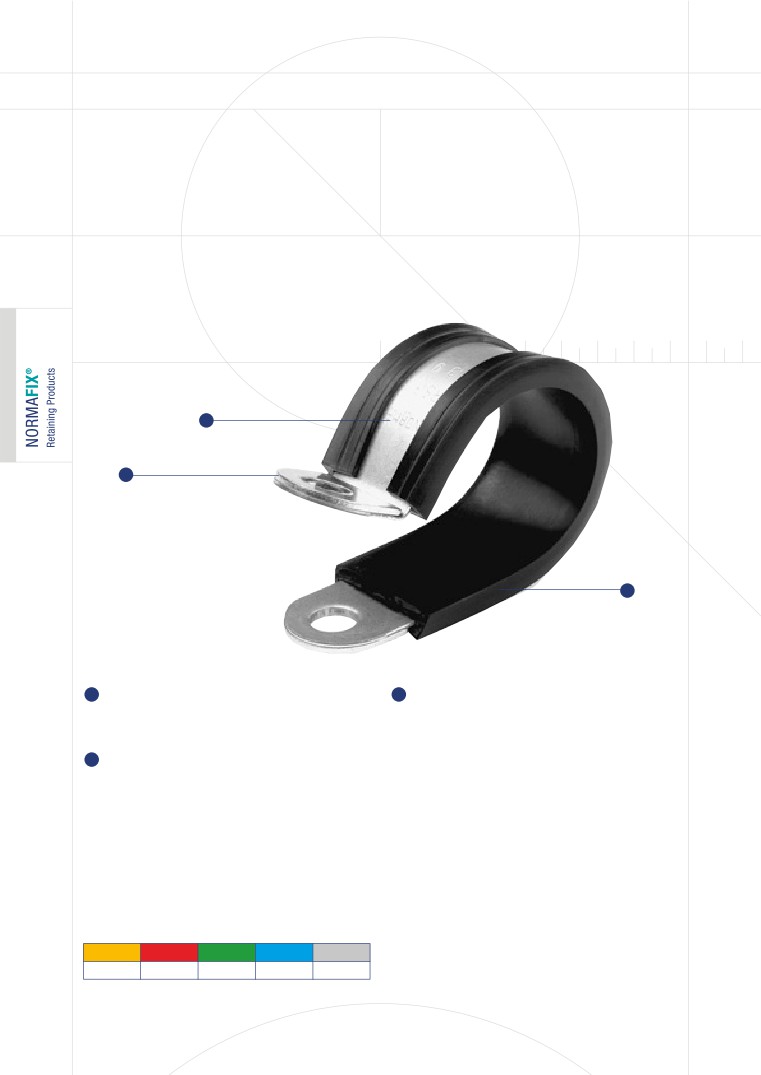

Short description of technical features
Type 1
1
2
3
1
Form fitting and adjustable band
3
Optionally supplied with EPDM profile
= ease of assembly
= vibration damping & protection against seepage water
= safe attachment
= sound insulation
= clip fits tight on object
2
Reinforced band ends
= prevent the clip from tearing or loosening in cases
where there is a high mechanical load
Materials
W1
W2
W3
W4
W5
x
x*
x*
x
* on request
88
NORMAFIX® - Retaining Products
EPDM profile
Material properties of EPDM profile
Material properties
EPDM profile
Tensile strength [N/mm2]
min. 8
Elongation at break [%]
350
Shore hardness A
70 ± 5
Temperature [°C]
- 40 up to +120
Resistance against:
Weather/ozone
Very good
Ageing and light
Very good
Petrol
Unstable
Oil and grease
Unstable
Alcohols
Good
B
= Band width of clamp
Acids
Good
b1
= Width in
mm
Alkalis
Good
s2
= Material thickness in mm
Silicone profile on demand.

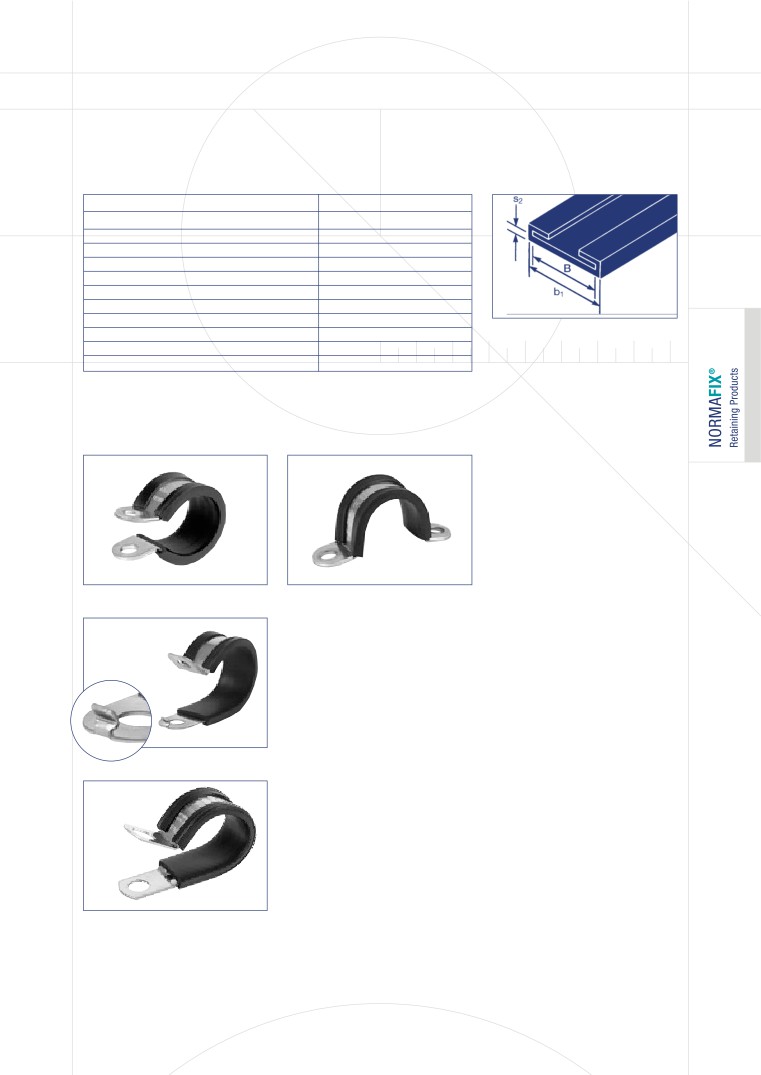

Clip types
The standard version NORMAFIX® RS/RSGU
clips (Type 1) are also available in a round
shape (NORMAFIX® RS/RSGU Type 0) or
open shaped (NORMAFIX® RS/RSGU Type 2).
Type 0
Type 2
In addition to the designs already mentioned we offer the NORMAFIX® RC clip. This
special design, a variation of the standard RS/RSGU Type 1, is provided with an inte-
grated mounting fastener. When the clip ends are compressed the fastener locks
into place and locks the clip. Thus the NORMAFIX® RC can be easily preassembled on
the pipe.
Diameters and band widths will be furnished on request.
Recently a new type, the NORMAFIX® RLGU, was added to our NORMAFIX® range. It is
also a variation of the standard Type 1, but without reinforced band ends and there-
fore suitable for use in applications submitted to only slight mechanical loads as, for
example, the fastening of cables.
NORMAFIX® RLGU are only available in band width 12 mm.
For the complete programme please refer to the table of sizes.
All NORMAFIX® pipe retaining clips are avail-
able with a special sound damping rubber
profile as optional equipment.
89
NORMAFIX® - Retaining Products
Screw
The clips are furnished without screws and nuts.
We recommend:
For NORMAFIX® RSGU band width 12 mm - Screw M 5
For NORMAFIX® RSGU band width 15 mm - Screw M 6
For NORMAFIX® RSGU band width 20 mm - Screw M 8
For NORMAFIX® RLGU band width 12 mm - Screw M 6
Applications
• Any kind of fixing and retaining
90
NORMAFIX® - Retaining Products
Survey of sizes, band widths & materials
NORMAFIX® RSGU/RS
Band width
Clamping Range
Packaging
(mm)
Description
in mm
in Inches
PU
W1
W5
12
RSGU 1.6/12
6
1/4
100
X
X
12
RSGU 1.8/12
8
5/16
100
X
X
12
RSGU 1.10/12
10
3/8
100
X
X
12
RSGU 1.12/12
12
1/2
100
X
X
12
RSGU 1.13/12
13
1/2
100
X
X
12
RSGU 1.14/12
14
9/16
100
X
X
12
RSGU 1.15/12
15
5/8
100
X
X
12
RSGU 1.16/12
16
5/8
100
X
X
12
RSGU 1.18/12
18
3/4
100
X
X
12
RSGU 1.19/12
19
3/4
100
X
X
12
RSGU 1.20/12
20
13/16
100
X
X
12
RSGU 1.21/12
21
13/16
100
X
X
12
RSGU 1.22/12
22
7/8
100
X
X
15
RSGU 1.6/15
6
1/4
100
X
X
15
RSGU 1.8/15
8
5/16
100
X
X
15
RSGU 1.10/15
10
3/8
100
X
X
15
RSGU 1.12/15
12
1/2
100
X
X
15
RSGU 1.13/15
13
1/2
100
X
X
15
RSGU 1.14/15
14
9/16
100
X
X
15
RSGU 1.15/15
15
5/8
100
X
X
15
RSGU 1.16/15
16
5/8
100
X
X
15
RSGU 1.18/15
18
3/4
100
X
X
15
RSGU 1.19/15
19
3/4
100
X
X
15
RSGU 1.20/15
20
13/16
100
X
X
15
RSGU 1.21/15
21
13/16
100
X
X
15
RSGU 1.22/15
22
7/8
100
X
X
15
RSGU 1.23/15
23
7/8
100
X
X
15
RSGU 1.25/15
25
1
100
X
X
15
RSGU 1.26/15
26
1 1/16
100
X
X
15
RSGU 1.28/15
28
1 1/8
100
X
X
15
RSGU 1.30/15
30
1 3/16
100
X
X
15
RSGU 1.32/15
32
1 1/4
100
X
X
15
RSGU 1.34/15
34
1 5/16
100
X
X
15
RSGU 1.35/15
35
1 3/8
100
X
X
PU = packaging unit
91
NORMAFIX® - Retaining Products
Survey of sizes, band widths & materials
NORMAFIX® RSGU
Band width
Clamping Range
Packaging
(mm)
Description
in mm
in Inches
PU
W1
W5
20
RSGU 1.10/20
10
3/8
100
X
X
20
RSGU 1.12/20
12
1/2
100
X
X
20
RSGU 1.13/20
13
1/2
100
X
X
20
RSGU 1.14/20
14
9/16
100
X
X
20
RSGU 1.15/20
15
5/8
100
X
X
20
RSGU 1.16/20
16
5/8
100
X
X
20
RSGU 1.18/20
18
3/4
100
X
X
20
RSGU 1.19/20
19
3/4
100
X
X
20
RSGU 1.20/20
20
13/16
100
X
X
20
RSGU 1.22/20
22
7/8
100
X
X
20
RSGU 1.23/20
23
7/8
100
X
X
20
RSGU 1.24/20
24
15/16
100
X
X
20
RSGU 1.25/20
25
1
100
X
X
20
RSGU 1.28/20
28
1 1/8
100
X
X
20
RSGU 1.30/20
30
1 3/16
100
X
X
20
RSGU 1.32/20
32
1 1/4
100
X
X
20
RSGU 1.34/20
34
1 5/16
100
X
X
20
RSGU 1.35/20
35
1 3/8
100
X
X
20
RSGU 1.36/20
36
1 7/16
100
X
X
20
RSGU 1.38/20
38
1 1/2
100
X
X
20
RSGU 1.40/20
40
1 9/16
100
X
X
PU = packaging unit
Enquiries/ordering:
When making enquiries or placing orders please state
as follows:
1. Type
2. Clamping Range
3. Band width
4. Material
(pipe outside diameter)
Example
RSGU 1.
6/
12
W1
92
NORMAFIX® - Retaining Products
Survey of sizes, band widths & materials
NORMAFIX® RLGU
Band width
Clamping Range
Packaging
(mm)
Description
in mm
in Inches
PU
W1
12
RLGU 1.5/12
5
3/16
100
X
12
RLGU 1.6/12
6
1/4
100
X
12
RLGU 1.7/12
7
5/16
100
X
12
RLGU 1.8/12
8
5/16
100
X
12
RLGU 1.9/12
9
3/8
100
X
12
RLGU 1.10/12
10
3/8
100
X
12
RLGU 1.11/12
11
7/16
100
X
12
RLGU 1.12/12
12
1/2
100
X
12
RLGU 1.13/12
13
1/2
100
X
12
RLGU 1.14/12
14
9/16
100
X
12
RLGU 1.15/12
15
5/8
100
X
12
RLGU 1.16/12
16
5/8
100
X
12
RLGU 1.17/12
17
11/16
100
X
12
RLGU 1.18/12
18
3/4
100
X
12
RLGU 1.19/12
19
3/4
100
X
12
RLGU 1.20/12
20
13/16
100
X
12
RLGU 1.21/12
21
13/16
100
X
12
RLGU 1.22/12
22
7/8
100
X
12
RLGU 1.23/12
23
7/8
100
X
12
RLGU 1.24/12
24
15/16
100
X
12
RLGU 1.25/12
25
1
100
X
12
RLGU 1.26/12
26
1 1/16
100
X
12
RLGU 1.27/12
27
1 1/16
100
X
12
RLGU 1.28/12
28
1 1/8
100
X
12
RLGU 1.29/12
29
1 1/8
100
X
12
RLGU 1.30/12
30
1 3/16
100
X
12
RLGU 1.31/12
31
1 1/4
100
X
12
RLGU 1.32/12
32
1 1/4
100
X
12
RLGU 1.33/12
33
1 5/16
100
X
12
RLGU 1.34/12
34
1 5/16
100
X
12
RLGU 1.35/12
35
1 3/8
100
X
12
RLGU 1.36/12
36
1 7/16
100
X
12
RLGU 1.37/12
37
1 7/16
100
X
12
RLGU 1.38/12
38
1 1/2
100
X
12
RLGU 1.39/12
39
1 9/16
100
X
12
RLGU 1.40/12
40
1 9/16
100
X
12
RLGU 1.41/12
41
1 5/8
100
X
12
RLGU 1.42/12
42
1 5/8
100
X
12
RLGU 1.43/12
43
1
11/16
100
X
12
RLGU 1.44/12
44
1 3/4
100
X
12
RLGU 1.45/12
45
1 3/4
100
X
PU = packaging unit
93
NORMAFIX® - Retaining Products
NORMAFIX® RS 0.
Pipe retaining clip type 0, without rubber sleeve
Band width
Min.
d
h12) (mm)
l
s
(mm)
ø1)
≈
W1
W3
W5
ø
9
5
4.3 (M4)
4.7 +
3.8
0.4
0.4
0.4
2
ø
12
5
5.3 (M5)
6.8 +
5.0
0.5
0.5
0.5
2
ø
… ø 14 = 0.6
15
8
6.4 (M6)
9.7 +
6.0
0.6
0.6
2
from ø 15 = 0.8
ø
… ø 25 = 0.8
20
15
8.4 (M8)
12.5 +
8.5
0.8
0.8
2
from ø 26 = 1.0
ø
… ø 49 = 1.0
25
20
10.5 (M10)
14.5 +
10.0
1.0
1.0
2
from ø 50 = 1.25
NORMAFIX® RSGU 0.
Pipe retaining clip type 0, with rubber sleeve
Band width
Min.
Rubber Sleeve
h12)(mm)
(mm)
ø1)
b1
s2
EPDM
Silicone
≈
ø
9
4
5.7 +
2
12.5
1.0
•
-
ø
12
4
8.0 +
2
15.0
1.2
•
•
ø
15
5
11.2 +
2
18.5
1.5
•
•
ø
20
10
14.5 +
2
25.0
2.0
•
•
ø
25
15
17.5 +
2
31.0
3.0
•
•
NORMAFIX® RS 1.
Pipe retaining clip type 1, without rubber sleeve
Band width
Min.
d
h12) (mm)
l
s
(mm)
ø1)
≈
W1
W3
W5
ø
9
5
4.3 (M4)
4.7 +
2
3.8
0.4
0.4
0.4
ø
12
5
5.3 (M5)
6.8 +
2
5.0
0.5
0.5
0.5
ø
… ø 14 = 0.6
15
8
6.4 (M6)
9.7 +
2
6.0
from ø 15 = 0.8
0.6
0.6
ø
… ø 25 = 0.8
20
15
8.4 (M8)
12.5 +
2
8.5
from ø 26 = 1.0
0.8
0.8
ø
… ø 49 = 1.0
25
20
10.5 (M10)
14.5 +
2
10.0
from ø 50 = 1.25
1.0
1.0
NORMAFIX® RSGU 1.
Pipe retaining clip type 1, with rubber sleeve
Band width
Min.
Rubber Sleeve
h12) (mm)
(mm)
ø1)
b1
s2
EPDM
Silicone
≈
ø
9
4
5.7 +
2
12.5
1.0
•
-
ø
12*
6
8.0 +
2
15.0
1.2
•
•
ø
15*
6
11.2 +
2
18.5
1.5
•
•
ø
20*
10
14.5 +
2
25.0
2.0
•
•
ø
25
15
17.5 +
2
31.0
3.0
•
•
* Standard range
94
NORMAFIX® - Retaining Products
NORMAFIX® RS 2.
Pipe retaining clips type 2, without rubber sleeve
Band width
Min.
d
h12) (mm)
l
s
(mm)
ø1)
≈
W1
W3
W5
ø
9
5
4.3 (M4)
4.7 +
2
3.8
0.4
0.4
0.4
ø
12
5
5.3 (M5)
6.8 +
5.0
0.5
0.5
0.5
2
ø
… ø 14 = 0.6
15
8
6.4 (M6)
9.7 +
6.0
0.6
0.6
2
from ø 15 = 0.8
ø
… ø 25 = 0.8
20
15
8.4 (M8)
12.5 +
8.5
0.8
0.8
2
from ø 26 = 1.0
ø
… ø 49 = 1.0
25
20
10.5 (M10)
14.5 +
10.0
1.0
1.0
2
from ø 50 = 1.25
NORMAFIX® RSGU 2.

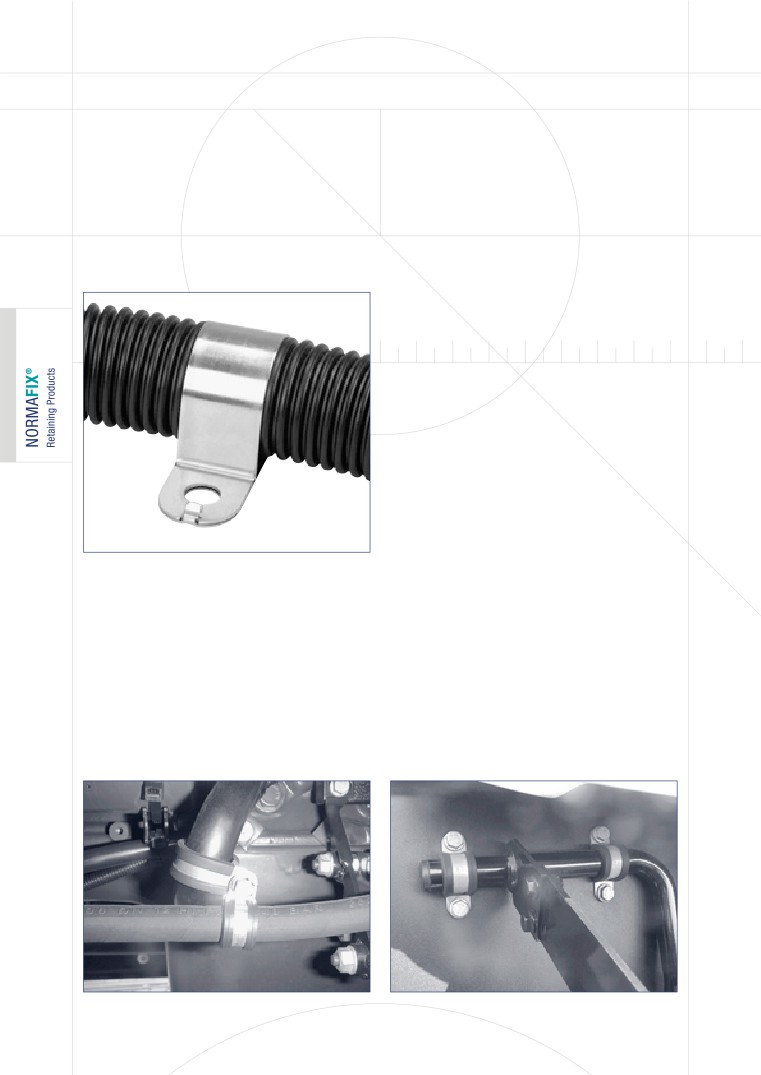

Pipe retaining clip type 2, with rubber sleeve
Band width
Min.
Rubber Sleeve
h12) (mm)
(mm)
ø1)
b1
s2
EPDM
Silicone
≈
ø
9
4
5.7 +
2
12.5
1.0
•
-
ø
12
4
8.0 +
2
15.0
1.2
•
•
ø
15
5
11.2 +
2
18.5
1.5
•
•
ø
20
10
14.5 +
2
25.0
2.0
•
•
ø
25
15
17.5 +
2
31.0
3.0
•
•
NORMAFIX® RLGU
Pipe retaining clip type 1, with rubber sleeve
Band width
Min.
d
h12) (mm)
l
Rubber Sleeve
s
(mm)
ø1)
≈
b1
s2
EPDM
W1
ø
… ø 11 = 0.6
12
4
6.4 (M6)
11.2 +
6
15
1.2
•
2
from ø 12 = 0.8
1) The increments are in steps of 1 mm.
b1 = Width in mm
2) Tool
s2 = Material thickness in mm (see page 89)
Bolts and nuts are not included in the delivery.
Abbreviations used in the table entries
95
